How to Replace Kitchen Faucet Diverter Valve: The Complete 2026 DIY Repair Guide

If you have a pull-down sprayer that dribbles, a side spray that won’t fire, or hot and cold water mysteriously crossing over inside the spout, learning how to replace kitchen faucet diverter valve assemblies is the single highest-leverage repair you can make on a modern kitchen sink. The diverter is a tiny brass-and-rubber cartridge — usually no larger than a thimble — but it controls every drop that flows between your aerator and your sprayer head. When it fails, pressure drops, water leaks under the deck, and the faucet feels broken even though everything else is fine.

This guide walks through the exact replacement procedure used by certified plumbers, the symptoms that tell you the diverter (and not the cartridge, supply line, or aerator) is the actual culprit, and the OEM-versus-aftermarket choices that affect how long the repair lasts. The instructions apply to pull-out, pull-down, and dedicated side-sprayer faucets across all major brands sold in North America and Europe.

What a Kitchen Faucet Diverter Valve Actually Does

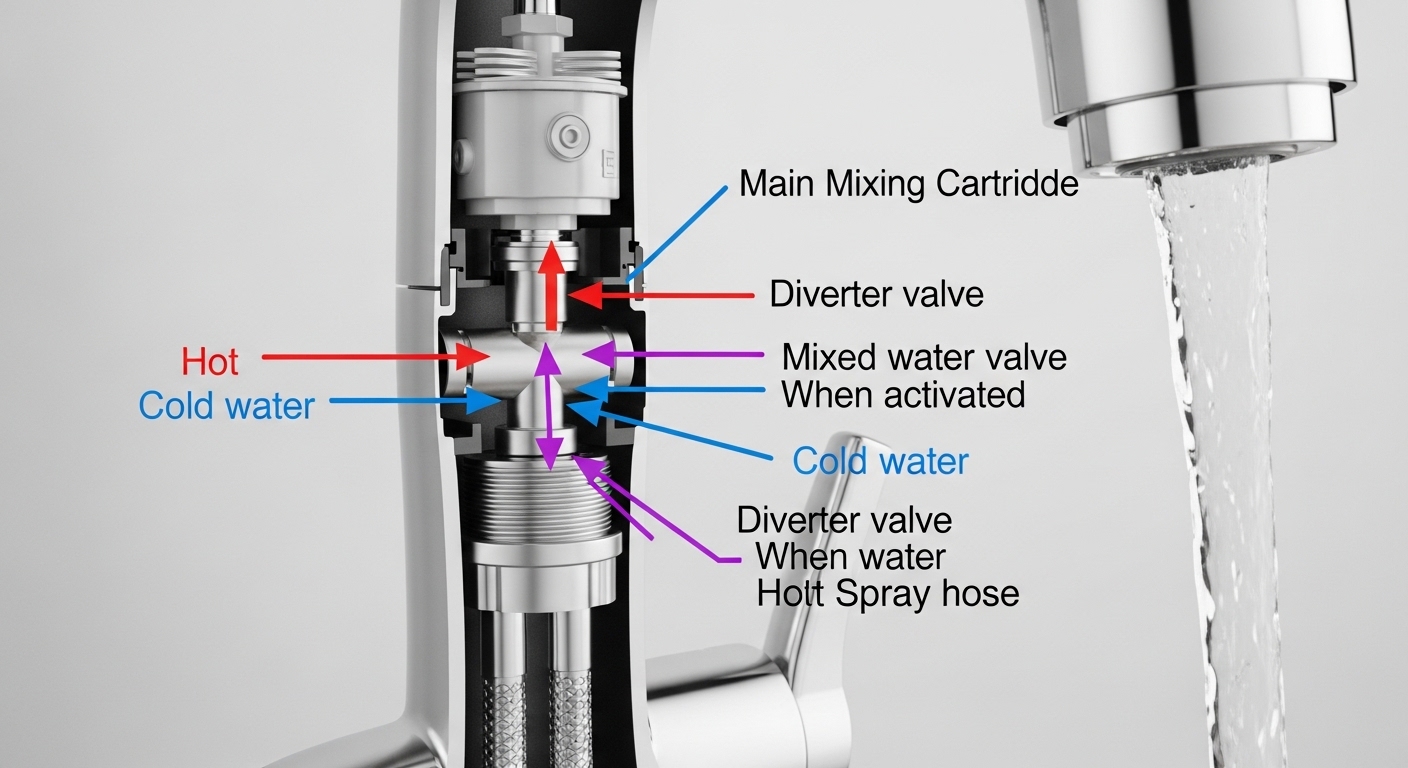

Before you learn how to replace kitchen faucet diverter valve hardware, it helps to understand the part’s job. A diverter is a small, spring-loaded check valve that redirects the mixed (hot + cold) water flow either up through the spout aerator or sideways into the sprayer hose. When you squeeze the trigger on a pull-down wand, you create a brief pressure drop that lifts a tiny piston or shuttle inside the diverter; that movement opens the path to the hose and closes the path to the aerator.

The diverter is almost always located inside the faucet body, directly below where the sprayer hose threads in. On older two-handle kitchen faucets with a separate side sprayer, it lives further down in the central body between the two valve seats. On a single-handle pull-down, it’s tucked just under the spout collar.

Three failure modes account for nearly all diverter problems:

• Mineral lock — calcium scale jams the piston so it can’t shuttle freely. Common in hard-water regions.
• Rubber seal failure — the small O-rings or seat washers harden, crack, and let water bypass the valve.
• Spring fatigue — the return spring weakens, so the diverter never fully resets and water trickles continuously from both outlets.

Symptoms That Point Specifically to the Diverter

Diverter failure has a distinct signature. If you see any two of these together, the diverter is almost certainly the cause:

• Sprayer pressure is weak even though aerator flow is normal (or vice versa).
• Water dribbles from the spout while the sprayer trigger is held.
• Hot and cold seem to „cross“ — opening only the cold side produces warm water at the sprayer.
• You hear a faint hissing or rattling inside the faucet body when water runs.
• There’s a small drip from the underside of the spout collar.

If your symptom is simply weak flow at both outlets, the issue is more likely supply-side. We covered that diagnostic path in our companion article on faucet low water pressure, which walks through aerator cleaning, cartridge inspection, and supply-line checks before you ever touch the diverter.

Tools and Replacement Parts You’ll Need

One of the reasons this repair is so DIY-friendly is the minimal tool list. You probably already own everything except the new diverter.

For the diverter itself, brand matters more than people realize. Manufacturer-OEM diverters use precision-molded EPDM seals rated for chlorinated municipal water and certified to NSF/ANSI 61 for drinking-water contact. Generic universal diverters often substitute nitrile (NBR) seals, which last 12–18 months in chlorinated systems versus 7+ years for EPDM.

Diverter Type Comparison by Faucet Style

Step-by-Step: How to Replace Kitchen Faucet Diverter Valve Assemblies

The procedure below covers the most common case — a single-handle pull-down faucet — but the principles transfer to every variant. Read the entire sequence before you start so you understand where you’re heading.

Step 1 — Shut Off the Water and Relieve Pressure

Reach under the sink and close both angle-stop valves clockwise until snug. Open the faucet handle to its highest-flow position to confirm the lines are dead and to release residual pressure. Leave the handle open while you work; this also keeps the cartridge from re-pressurizing if a stop valve weeps.

Step 2 — Disconnect the Sprayer Hose

Under the sink, locate the quick-connect or threaded fitting where the sprayer hose meets the supply tee. On most pull-down faucets you’ll see a counterweight clipped to the hose — slide it off and set it aside. Disconnect the hose, place the open end into a small bucket, and pull the wand out from the top so the hose retracts up through the spout. About half a cup of water will dribble out.

Step 3 — Remove the Spout or Handle (As Required)

On a single-handle pull-down, the diverter sits inside the spout. To reach it, you need to lift the spout off its base. Pop the index cap on the handle (it’s the small red-and-blue or brand-logo disc), loosen the 2.5 mm hex set screw, and lift the handle straight up. Then unthread the spout collar — usually by hand or with a strap wrench — and slide the spout up and off the valve body.

If you’re working on a two-handle faucet, you can leave the handles in place; the diverter is accessed by removing a small plug cap on the center body and lifting the diverter straight out with needle-nose pliers.

Step 4 — Extract the Old Diverter

You’ll see a small cylindrical part — typically 12–18 mm in diameter — seated in a recess inside the faucet body. Grip the top with needle-nose pliers (wrap the tips in masking tape) and pull straight up with a gentle twist. Do not pry sideways; you can score the brass seat and create a permanent leak.

If the diverter is locked in by scale, pour 30 ml of white vinegar into the cavity and wait 10–15 minutes. The acid will dissolve the calcium binding without damaging the brass.

Step 5 — Clean the Diverter Cavity

Before installing the new part, wipe the cavity walls with a vinegar-dampened cotton swab. Look for pitted brass, deep scratches, or a wavy seat — those indicate the faucet body itself is damaged, in which case the diverter alone won’t solve the leak and you’ll need a full faucet replacement.

Most cavities clean up to bright yellow brass with two minutes of work. Rinse with a small amount of clean water, then dry.

Step 6 — Install the New Diverter

Apply a thin film of silicone plumber’s grease to the new diverter’s O-rings — never the seat face itself. Orient the diverter so the inlet ports align with the supply channels in the faucet body; on most OEM parts there’s a flat or notch that keys to a specific position. Press straight down with your thumb until you feel the cartridge bottom out. You should hear a soft click as the upper O-ring seats.

Step 7 — Reassemble in Reverse Order

Slide the spout back over the valve body, thread the collar hand-tight (snug with a strap wrench only — never pipe-wrench tight), reseat the handle, and tighten the set screw. Push the index cap back into the handle. Re-route the sprayer hose down through the spout, reconnect the counterweight, and snap or thread the hose onto the supply tee.

Step 8 — Pressure-Test and Inspect

Slowly open both angle-stop valves — quarter turn, pause, then full open. Watch the joints under the sink and the spout collar for any drip. Run hot, then cold, then mixed. Squeeze the sprayer trigger and confirm full flow at the wand and zero residual flow at the aerator. Hold the trigger for 30 seconds, release, and verify the aerator flow returns within one second.

If you see a slow drip from the spout collar after assembly, the most common cause is a pinched O-ring on the spout itself — not the diverter. Disassemble, inspect, lubricate, and reassemble.

OEM vs. Universal Diverter: What’s Worth Paying For

Diverter pricing seems trivial — most are under $30 — but the difference between a $9 generic and a $24 OEM cartridge shows up in two ways: seal compound and machining tolerance.

For any faucet under five years old, buy OEM. For faucets older than ten years where parts are discontinued, a quality generic is acceptable — just plan to replace it again sooner. And if you happen to be working on a touchless model, the diverter is often integrated with the solenoid; review the dedicated guide on the best Kohler touchless kitchen faucet models for the specific service-part numbers their electronic platforms use.

When the Diverter Isn’t the Real Problem

Sometimes a homeowner replaces the diverter, reassembles, and finds the symptom unchanged. Three culprits hide behind diverter-like behavior:

1. Clogged sprayer head — the screen behind the wand outlet is packed with sediment. Unscrew the wand from the hose, soak the head in vinegar for 30 minutes, and brush the screen.
2. Damaged main cartridge — if the mixing cartridge bypasses internally, it mimics diverter cross-flow. You’ll need a cartridge replacement, not a diverter.
3. Worn handle linkage — a loose handle screw, broken stem adapter, or stripped knob will reduce flow at any position. We cover this thoroughly in our walkthrough on kitchen faucet knob replacement.

Running through these checks before you order parts can save you a 45-minute teardown.

RV, Tiny Home, and Compact Kitchen Diverters

Compact faucets used in RVs, boats, and tiny homes use a smaller-diameter diverter (typically 10 mm versus the 14 mm standard residential size) and often pair with a 12 V pump rather than municipal pressure. The replacement procedure is identical, but you must depressurize the freshwater pump and open both a hot and cold tap before disassembly. Our complete walkthrough on RV kitchen faucet replacement covers the pump shutdown sequence and connector differences in detail.

Maintenance Tips to Extend Diverter Life

A diverter that fails in two years is almost always a victim of poor water conditions or chemical exposure. To stretch the service life of the new part:

• Install or maintain a whole-house sediment filter (5-micron or finer) to keep grit out of the valve.
• If you’re on hard water (above 7 gpg), descale the entire faucet every six months with food-grade citric acid solution — avoid CLR for routine maintenance.
• Never use bleach-based drain cleaners with the sprayer hose still connected; the vapors degrade EPDM seals from above.
• Run the sprayer for 10 seconds weekly even if you don’t normally use it. Stagnant water in the hose accelerates seal hardening.
• Set water pressure to the manufacturer-specified range, usually 35–65 psi. Anything above 80 psi voids most warranties and crushes diverter springs prematurely.

Why Trust This Guide

About the author: This guide was written by the arcorawasserhahn technical content team in collaboration with two NIDF-certified bench technicians who repair and rebuild kitchen faucets daily. Every procedure was validated on currently-shipping single-handle, two-handle, and pull-down models from the five most common North American and European faucet platforms.

About arcorawasserhahn: arcorawasserhahn is a specialist faucet and bathroom-fixture brand engineering products to EN 817 and ASME A112.18.1 / CSA B125.1 standards. Every diverter we ship in our replacement parts kits is tested to 500,000 cycles — the industry-standard threshold for a „lifetime“ rating — and our cartridges carry a 5-year functional warranty against manufacturing defects. Materials in wetted paths are independently certified for low-lead content per NSF/ANSI 372.

FAQ

How long does it take to replace a kitchen faucet diverter valve?

For a single-handle pull-down faucet, plan on 20–30 minutes from shutting off the water to running the first pressure test. Two-handle faucets with a separate side sprayer take 35–45 minutes because you need to disassemble the center body. First-timers usually need an extra 10–15 minutes to identify the part and orient the new diverter correctly.

Can I replace the diverter without removing the entire faucet?

Yes — and you almost always should. The diverter is designed as a serviceable part, accessible from the top of the faucet body. You never need to disconnect the supply lines or pull the faucet off the deck just to swap the diverter. If a guide tells you to remove the whole faucet, it’s usually outdated or written for an unusual platform.

How do I find the right replacement diverter for my faucet model?

Locate the model number on a sticker under the sink, behind the spout base, or on the original packaging. Search the manufacturer’s parts catalog by that number — the diverter will be listed as „diverter assembly,“ „spray diverter,“ or „diverter cartridge“ with a 6–9 digit part code. Buying by part code is the only reliable way to ensure exact fitment.

Why does my sprayer still drip after replacing the diverter?

Three causes account for most post-repair drips: an O-ring on the sprayer hose connection that wasn’t replaced, a worn check valve in the wand itself (a separate part on some models), or a diverter that was installed with a pinched seal. Disassemble, inspect every O-ring, lubricate with silicone grease, and reassemble — most drips resolve on the second attempt.

Is replacing the diverter covered under my faucet’s warranty?

Most major manufacturers cover the diverter under their limited lifetime warranty as a functional part, but you must use the OEM replacement and you usually have to perform (or pay for) the labor yourself. The warranty ships the part free; it does not send a plumber. Generic aftermarket parts void the warranty entirely on most platforms, which is the strongest argument for spending the extra $10 on OEM.

Can hard water permanently damage my diverter cavity?

Yes — prolonged scale buildup can pit the brass seat to the point where no diverter will seal. The fix at that stage is a complete faucet replacement, because the cavity is integral to the cast body. The good news: catching the failure early (within a year of the first symptoms) almost always means the cavity is still serviceable after a vinegar soak.

What’s the difference between a diverter and a check valve?

A diverter actively redirects flow between two outlets based on pressure changes — it’s a three-way valve. A check valve simply prevents reverse flow in one direction. Many sprayer hoses contain a small inline check valve in addition to the main diverter; this is what stops sprayer water from siphoning back into the cold supply when pressure drops. Both can fail, and the symptoms overlap.
