Shower Faucet Elevation CAD Block: The 2026 Specifier’s Sourcing & Buying Guide

If you’re sourcing a shower faucet elevation CAD block for a hospitality renovation, multi-unit residential build, or a single high-end custom bathroom, you already know that the drawing isn’t just a graphic — it’s the contract between the designer, the plumber, and the trim package that finally ships to site. A well-built elevation block locks in the centerline height of the diverter, the projection of the showerhead arm, the offset of the hand shower bracket, and the exact rough-in dimensions of the pressure-balance or thermostatic valve behind the wall. Get the block right, and the install crew nails it on the first try. Get it wrong, and you’re tiling around a valve that sits two inches too low.

This article is written for commercial specifiers, kitchen-and-bath designers, and serious DIY remodelers who want to download or build an accurate shower faucet elevation CAD block — and then match it to a real, in-stock trim kit that meets ASME A112.18.1 / CSA B125.1 standards. We’ll cover sourcing, dimensional conventions, finish callouts, and how arcorawasserhahn’s catalog maps to the symbology you’ll see in DWG and RVT libraries.

What Exactly Is a Shower Faucet Elevation CAD Block?

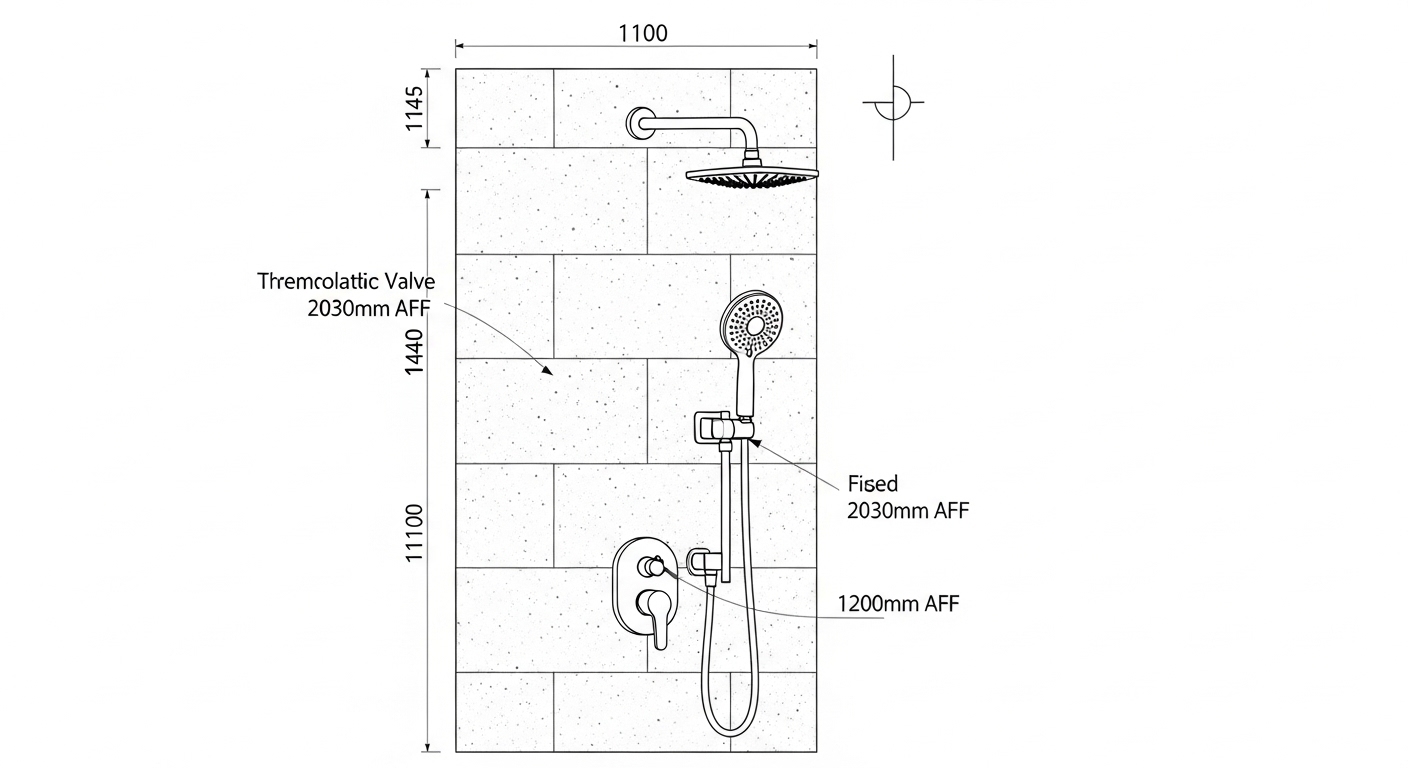

A shower faucet elevation CAD block is a reusable 2D drawing object — typically saved as a .dwg, .dxf, or .rfa (Revit family) — that represents the front-facing view of a shower control valve and its associated trim as seen on a finished wall. Unlike a plan-view block (which shows the fixture from above) or a section block (which slices through the wall), the elevation block is what you place on an interior wall elevation sheet to communicate exactly how the finished shower will look and where every penetration sits.

The block usually bundles several discrete symbols: the trim escutcheon, the handle or lever, the diverter (if separate), the fixed showerhead and arm, and any accessory outlets like a hand shower, body sprays, or a tub spout. Dimensional callouts — almost always in millimeters for international projects and in inches for North American sets — anchor each component to a reference datum, typically AFF (Above Finished Floor) or the shower curb.

Why Specifiers Care About Block Accuracy

Because the elevation block drives three downstream deliverables: the plumbing rough-in schedule, the tile setting-out drawing, and the procurement spec for the trim kit. If the CAD block shows a valve centerline at 1100mm but the actual trim escutcheon is 165mm tall, your tiler needs to know that before they start cutting around a 90mm-diameter cylindrical plate. The shower faucet elevation CAD block is the single source of truth that prevents that mismatch.

Where to Source a Reliable Shower Faucet Elevation CAD Block

There are four tiers of sources, and they’re not equal. Spec-grade libraries from manufacturers are the gold standard because the geometry matches an actual SKU you can buy. Generic CAD marketplaces are useful for early-concept layouts but rarely reflect a real product. BIM object aggregators sit in between. And then there’s the in-house block — the one your firm has been editing for fifteen years, which is usually accurate for layout but vague on trim detail.

For commercial projects with a signed-off finishes schedule, we strongly recommend pulling the elevation block directly from the manufacturer’s technical library and matching it line-for-line to the model number you’re specifying. arcorawasserhahn publishes cut sheets and 2D elevations for every shower trim it sells, and our European-format DWG files use the ISO 128 line weight conventions that most consultants already have set up in their CAD templates.

Critical Dimensions Every Shower Faucet Elevation CAD Block Should Show

A complete shower faucet elevation CAD block isn’t just a pretty rectangle with a circle on it. To be useful for construction, the block has to communicate every dimension the plumber and tiler need. Here’s the non-negotiable list:

• Valve centerline AFF — typically 1050–1150mm (41″–45″) for a single-handle pressure-balance valve in a standing shower.
• Showerhead arm penetration height — usually 1950–2100mm (77″–83″) for North American ceiling heights, but bump it for taller users.
• Hand shower bracket height — 1200–1500mm (47″–59″) AFF, depending on whether it doubles as a grab rail.
• Tub spout centerline — 100–150mm above the tub rim, with a horizontal offset from the valve centerline.
• Diverter or volume control offset — only relevant for multi-function trims; show both vertical and horizontal dimensions from the main valve.
• Body spray jets — if specified, dimensioned in a grid pattern with each jet’s AFF and offset from the valve centerline.
• Trim escutcheon diameter or outline — drawn at actual size so the tiler can see how much wall area will be hidden.
• Rough-in box outline (dashed) — shows the actual valve body behind the wall, which determines stud framing.

Notice that we always dimension to centerlines, never to escutcheon edges. Escutcheons can be swapped between square, round, and rectangular plates depending on the trim style, but the valve centerline is fixed by the rough-in. If you’re new to specifying shower valves and you find your current pressure feels weak after install, our deep dive on diagnosing faucet low water pressure walks through the cartridge, supply line, and aerator checks that often reveal the real culprit.

AFF Reference Datum: The Most Common Mistake

Half the field issues we see on commercial projects come from inconsistent datum. Is the AFF measured from the subfloor, the finished tile, or the shower curb? Your shower faucet elevation CAD block needs an explicit note. arcorawasserhahn’s library defaults to „AFF = top of finished floor in adjacent dry area,“ which matches the ANSI/ASME convention used by most North American plumbing inspectors. If you’re doing a curbless wet room, you’ll need a different datum — flag it on the sheet.

Mapping the CAD Block to a Real Trim Kit

This is where commercial specifiers earn their fee. A block from a generic library will show a generic valve, but the trim kit you actually order has a specific escutcheon shape, handle geometry, and outlet count. The block needs to match the trim — or at minimum, the block needs an embedded attribute that calls out the model number, finish code, and rough-in valve part number.

arcorawasserhahn shower trims are organized into three architectural families: Cylindrica (round escutcheon, lever handle), Quadra (square escutcheon, joystick handle), and Lineara (rectangular plate, multi-function trim). Each family has a corresponding CAD block in the technical library, and each block carries a model attribute that ties back to a specific SKU on the e-commerce side.

Finish Callouts in the Block

Finish doesn’t change the geometry, but it does change the procurement code. A solid CAD block uses a text attribute (not a hard-coded label) for the finish field, so your specifier can swap „PC“ (polished chrome) for „MB“ (matte black) without redrawing the block. If you’re choosing between chrome and nickel for a hospitality project, our breakdown of polished chrome vs. polished nickel covers durability, color temperature, and how each finish ages in a high-moisture environment.

Single-Handle vs. Thermostatic vs. Multi-Function Trims

The valve type behind the wall directly drives the elevation block geometry. You can’t drop a generic single-handle block onto a wall that’s getting a thermostatic trim — the rough-in is different, the escutcheon is wider, and the controls sit at different heights.

For pressure-balance valves, the block should call out an ASSE 1016 compliance note in a text attribute — that’s the scald-protection standard most jurisdictions require. For thermostatic valves, you’re looking at ASSE 1016 and EN 1111 compliance, both of which arcorawasserhahn trims are tested against. Always confirm the local code before locking your spec.

How to Insert and Configure a Shower Faucet Elevation CAD Block in AutoCAD or Revit

Workflow differs between AutoCAD and Revit, but the goal is the same: place the block on the correct wall elevation, lock its datum to the finished floor reference, and populate the attributes so they read out cleanly on the finishes schedule.

AutoCAD Workflow (Step-by-Step)

1. Set your current layer to A-PLUM-FIXT or your office equivalent before inserting.
2. Open the elevation viewport for the relevant shower wall.
3. Use the INSERT command, browse to the downloaded shower faucet elevation CAD block, and confirm the insertion point is the valve centerline (not the escutcheon corner — common error).
4. Snap the insertion point to a temporary horizontal line at the target AFF dimension.
5. Right-click the inserted block, choose „Edit Attributes,“ and fill in the model number, finish code, rough-in part number, and ASSE compliance note.
6. Add dimension strings from the finished floor datum to each centerline (valve, head, hand shower).
7. Verify the block scaled at 1:1 — never trust the auto-scale from a downloaded file.

Revit Workflow (Step-by-Step)

1. Load the .rfa family into your project via Insert → Load Family.
2. Place the family on the shower wall in an elevation view, not a plan view.
3. Use the „Offset“ parameter to set the AFF height from the level datum.
4. Confirm the host wall is the correct finish thickness so the trim sits proud of the tile by the right amount (typically 3–5mm).
5. Populate the type parameters: model, finish, valve rough-in, and any compliance flags.
6. Tag the family with a shower trim tag that reads model + finish on the elevation sheet.

If you’re working through a broader bathroom plumbing rough-in and the layout includes a separate basin with a widespread or centerset faucet, the centerset vs. widespread decision affects the basin wall elevation too — our guide on widespread vs. centerset bathroom faucets covers the rough-in dimensions you’ll need for that side of the room.

Common Mistakes Specifiers Make With Shower Elevation Blocks

After reviewing thousands of construction drawing sets at arcorawasserhahn’s specifier desk, the same handful of errors come up again and again. Most are caught at submittal review, but the costly ones make it to the field.

• Wrong AFF datum. Drawing measured from subfloor, but the field crew installs from finished tile, putting the valve 12–15mm low.
• Mismatched trim and rough-in. Block shows a Cylindrica trim but the spec calls for a Lineara — different escutcheons, different cover plate dimensions.
• Missing diverter. Multi-function trims need the diverter shown explicitly, not merged into the main valve symbol.
• No body spray dimensions. If body sprays are in the spec, every jet needs an AFF + horizontal offset, not just a generic „see fixture schedule“ note.
• Showerhead arm projection ignored. The arm projects 150–250mm from the wall, which affects clearance to the opposite wall in a small enclosure.
• No accessibility consideration. ADA-compliant or BS 8300 grab rail clearances often conflict with a generic block — check before approving the spec.
• Finish code omitted from the block attribute. Procurement orders the default finish, and you find out at install.

Of these, the AFF datum issue is the single most common — and the cheapest to prevent. Add a clear note on every shower elevation sheet: „All shower fixture dimensions are to centerlines, measured AFF from top of finished tile floor in shower.“ That one note has saved more retiling jobs than any other piece of documentation.

Arcorawasserhahn’s Spec-Ready CAD & BIM Library

We maintain a complete, regularly updated library of 2D elevation blocks (DWG, DXF) and 3D Revit families (.rfa) for every shower trim we sell. Files are issued in both metric and imperial dimensioning, and each block carries embedded attributes for SKU, finish, valve rough-in, and compliance standards (ASME A112.18.1, CSA B125.1, ASSE 1016, EN 1111). All trims are factory tested to a minimum 500,000-cycle handle life and carry a limited lifetime warranty against finish and functional defects under normal residential use; commercial use carries a 5-year warranty.

The library is free for registered specifiers, and our technical team responds to custom block requests within two business days. If you need a hand-shower bracket or grab rail dimensioned for an accessibility-compliant project, send the sheet and we’ll mark it up.

Author Note & Credibility

This guide was written by the arcorawasserhahn technical specification team, which includes two licensed plumbing designers and a former hospitality FF&E procurement lead. arcorawasserhahn has supplied bathroom fixtures to over 14,000 European and North American projects since 2012, including boutique hotel groups, multi-unit residential developers, and independent kitchen-and-bath dealers. All products are manufactured to ISO 9001 quality systems, lead-free certified per NSF/ANSI 372, and finish-tested for 200+ hours of neutral salt spray exposure per ASTM B117.

FAQ

What file format should I use for a shower faucet elevation CAD block?

For 2D drawings, .dwg is the universal standard and works in AutoCAD, BricsCAD, and most other CAD platforms. .dxf is the open exchange format if you’re handing off to a non-Autodesk team. For BIM workflows, use .rfa (Revit) or .ifc (open BIM). arcorawasserhahn publishes all three formats for current production trims.

What is the standard valve centerline height for a shower faucet?

The most common North American standard is 1100mm (43–45 inches) AFF for a single-handle pressure-balance valve. European projects often spec 1050–1100mm. For thermostatic trims with separated controls, the temperature dial typically sits 50–100mm above the volume control. Always confirm against the user profile — taller end users may prefer 1150–1200mm.

Do I need a separate CAD block for each finish?

No. A well-built block uses a finish attribute (a swappable text field) rather than hard-coding the finish into the geometry. One block represents all finishes; you change the attribute when you change the spec. This is also why you should never download a block that bakes a finish color into the linework.

How do I dimension a hand shower in the elevation block?

Show the bracket centerline at its AFF height (typically 1200mm), with the hose drop indicated as a dashed curve to the trim outlet. Include the bracket’s horizontal offset from the main valve centerline. If the bracket doubles as an ADA grab rail, add a note flagging the load rating (typically 113kg / 250lbs) and any compliance standard.

Can I use the same elevation block for a tub-shower combo?

Not directly — you need to add the tub spout symbol with its own centerline (usually 100–150mm above the tub rim) and a diverter callout, since the trim has to redirect water between the spout and the showerhead. arcorawasserhahn publishes separate elevation blocks for shower-only and tub-shower trim packages because the valve internals and the diverter logic are different.

What standards should the shower trim meet for a US commercial project?

At minimum: ASME A112.18.1 / CSA B125.1 for the trim, ASSE 1016 for scald protection (pressure-balance or thermostatic), and NSF/ANSI 61 / 372 for lead content in wetted surfaces. Many hospitality clients also require a 5-year commercial warranty and a minimum 500,000-cycle handle life. arcorawasserhahn trims meet all of these as standard.

Where can I download the arcorawasserhahn shower elevation library?

The full DWG and Revit library is available from the specifier portal on www.arcorawasserhahn.de. Registration is free for designers, architects, and trade professionals, and the library updates whenever a trim’s geometry or finish range changes.
